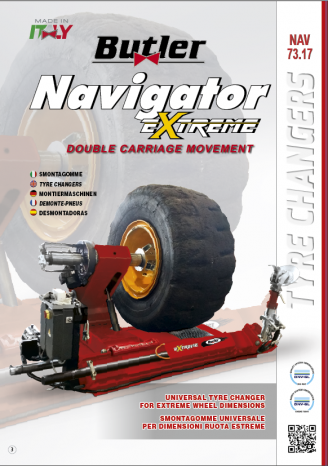

UNIVERSAL TYRE CHANGER FOR EXTREME WHEEL DIMENSIONS
Electrohydraulic tyre changer for trucks, agricultural and earthmoving vehicles.
The dimensions and work strokes are such as to ensure maximum efficiency for the entire range of tyres.
HIGH BEAD BREAKING FORCE
Thanks to its considerable bead breaking force mounting and demounting are effortless, even when working with tyres which have been left on the rim for a long period of time in construction sites or mines.
MULTIPLE ADJUSTABLE GUIDES
The electro-brake allows immediate stopping of the rotation to avoid any damage to the tyre.
After 5 sec. the machine has not been used, the motor turns off.
The big chucking dimension permits to work on extreme tyres without any interference with the chucking arm, granting also to reach 50″ Inch without any need of extensions.
|Chucking unit rotation motor||1,5 – 2,2 kW|
|Hydraulic drive unit motor||1,8 – 2,5 kW|
|Rim Ø||11” – 50”|
|Rim Ø with G108A39||11” – 60”|
|Max. wheel Ø||2700mm – 106”|
|Max. allowed wheel width||1750mm – 69”|
|min. internal clamping||90 mm|
|Bead breaker power IN||42000 N|
|Bead breaker power OUT||42000 N|
|Max wheel weight||3000 kg|
|Chuck rotation speed (rev/min)||1 – 5 – 10|
|Max. torque to chuck||6000 Nm|
