CISOR LOW PROFILE SERIES

CISOR LOW PROFILE SERIES 35 LOW - LOW T - LOW A - LOW AT / 35/46 LOW A - LOW AT

Features

Low profile electro-hydraulic scissors lifts.

CE approved lift with low voltage controls. All pivot points made with self lubricating bushings for long life. No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area). Every time the platforms reach the floor, the lift is perfectly levelled thanks to a patented valve.


BT_CISOR-Low_155mm

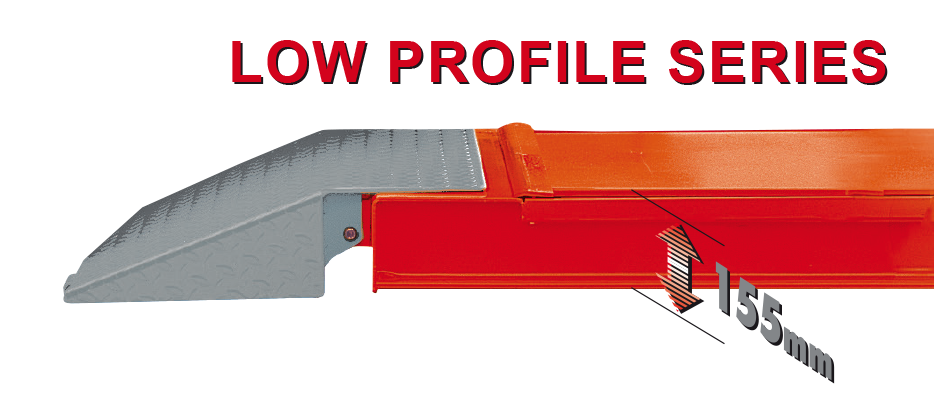

Minimal platforms height 155 mm: easy access including cars with low spoilers. Limited length.


Hydraulic levelling system by means of a patented synchronisation device assures constantly level lifting platforms regardless of weight distribution.

 BT_CISOR-Low_Features

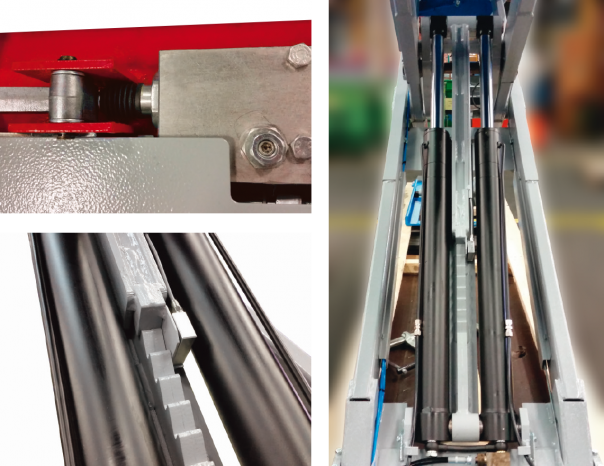

Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position.

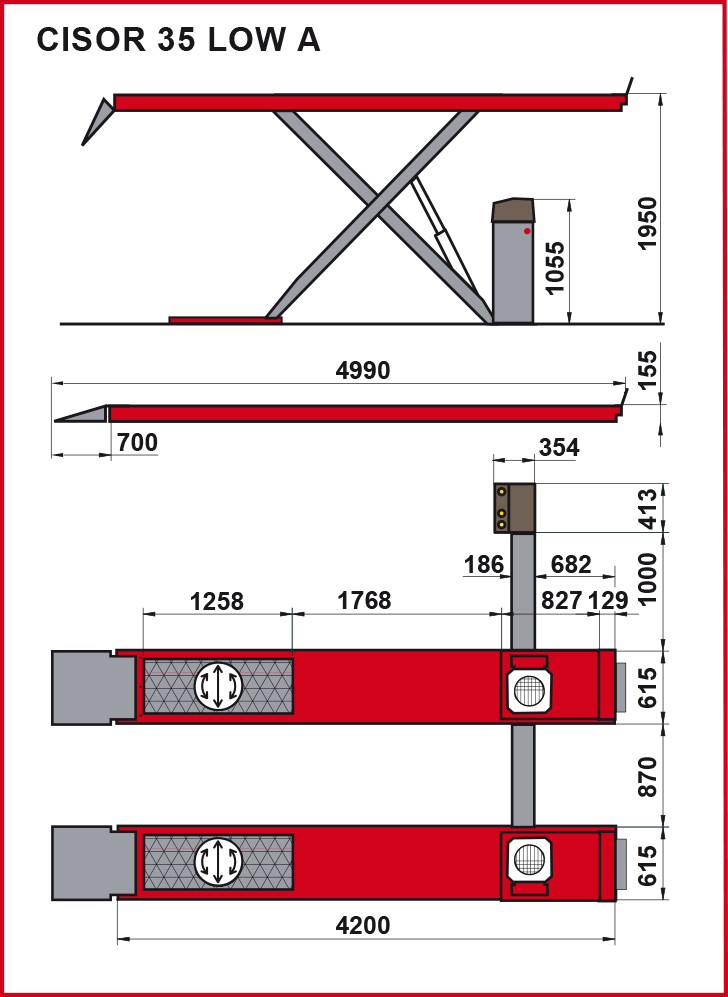

CISOR 35 L0W A 3500 kg / 4200 mm

Lifts for wheel alignment with front recesses for turntables and rear slip plates.


CISOR 35/46 LOW A 3500 kg / 4600 mm

Wheel alignment version with 4600mm long platforms.

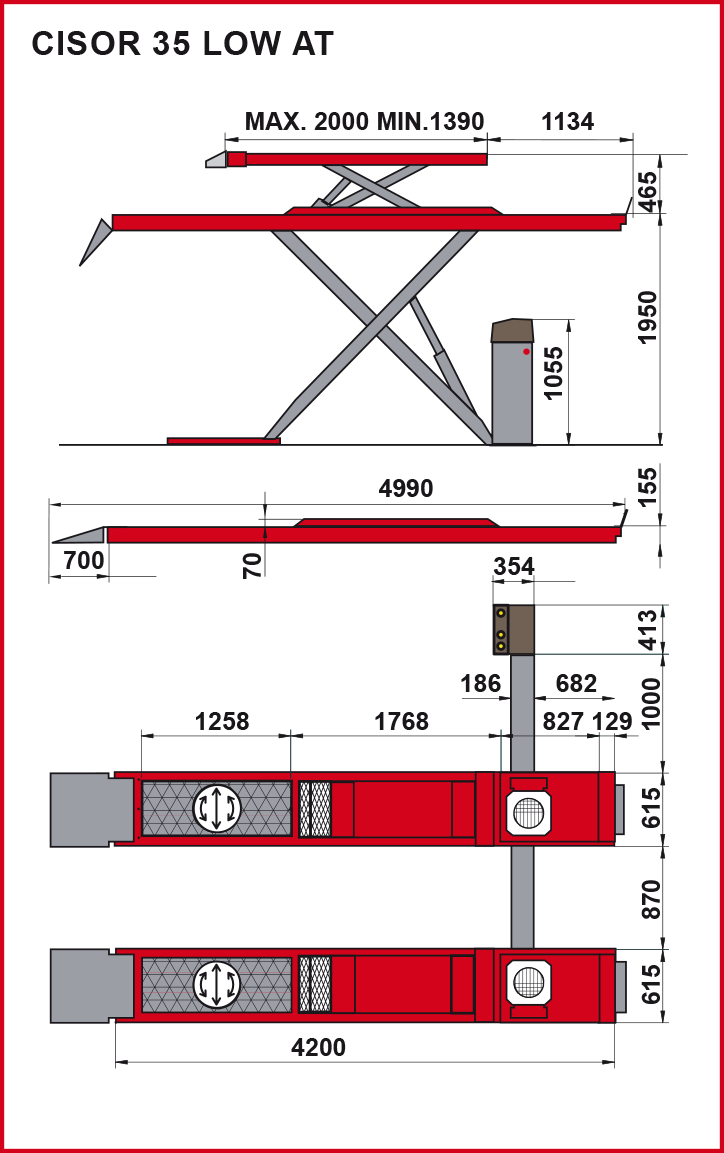

CISOR 35 LOW AT 3500 kg / 4200 mm

Built in wheel free lift with adjustable extensions to optimise vehicle loading..


CISOR 35/46 LOW AT 3500 kg / 4600 mm

Wheel alignment version with integrated wheel-free lift and 4600mm long platforms.


BT_CISOR-Low_piattaforme

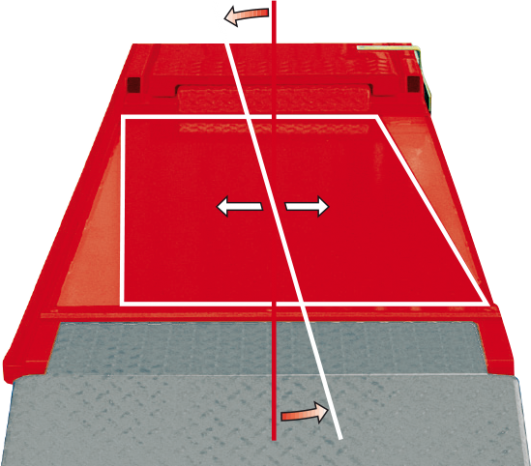

Rear slip plates with pneumatic locking in true position, angular and transversal movements in both directions.


CISOR 35 LOW 3500 kg / 4200 mm

Lifts with flat platforms:

  • Ideal for space saving.

  • The best alternative to flush installation.

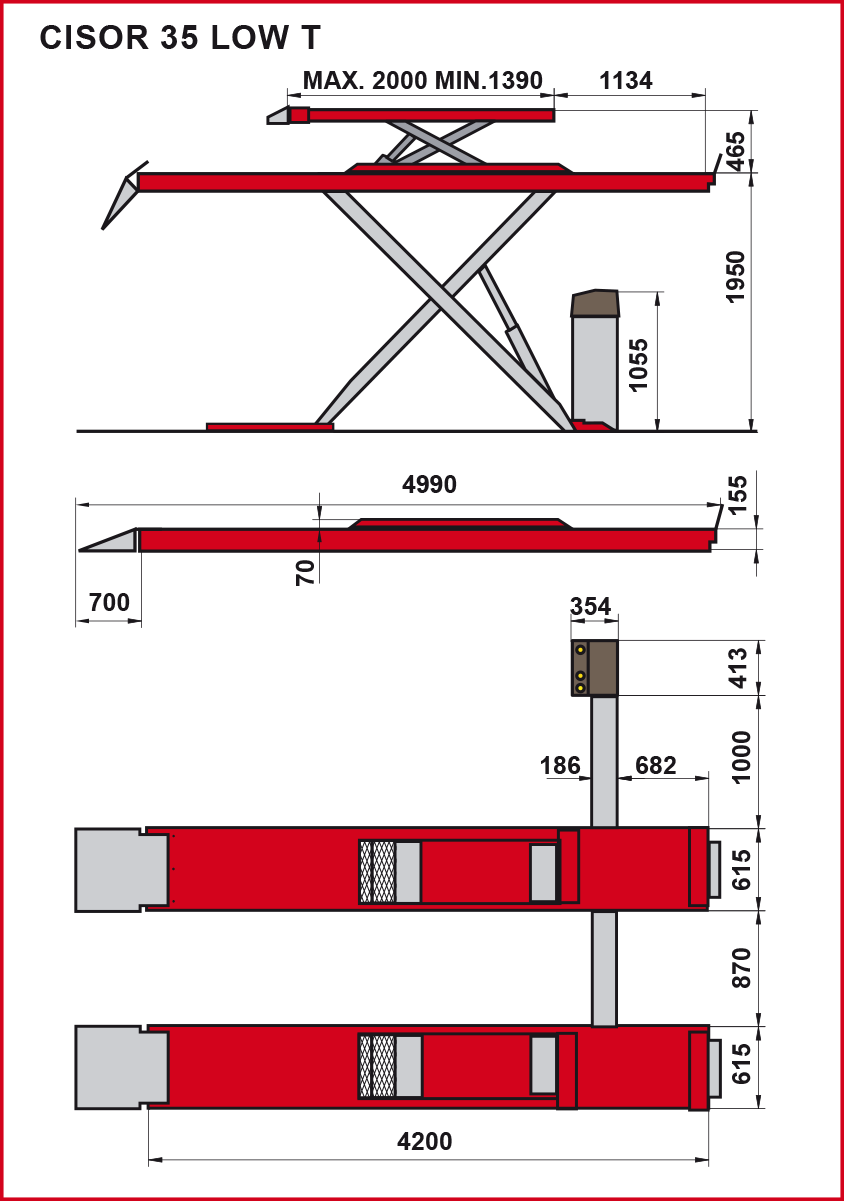

CISOR 35 LOW T 3500 kg / 4200 mm

Built in wheel free lift with adjustable extensions to optimise vehicle loading.

 BT_CISOR-Low_T
