ALVAR

ALVAR 35 - 50

Features

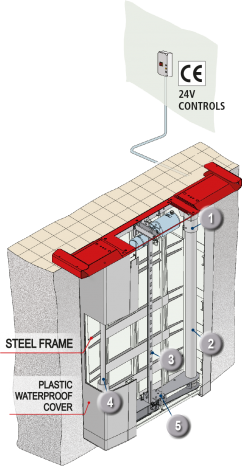

BT_ALVAR35_123

01 Columns guides in oil bath, maintenance free.

02 Hard chrome columns grant long life.

03 Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.

04 Each column features a maintenance-free lifting cylinder.

05 Cross bar with double joint to eliminate vibrations


BT_ALVAR35_cassetta02

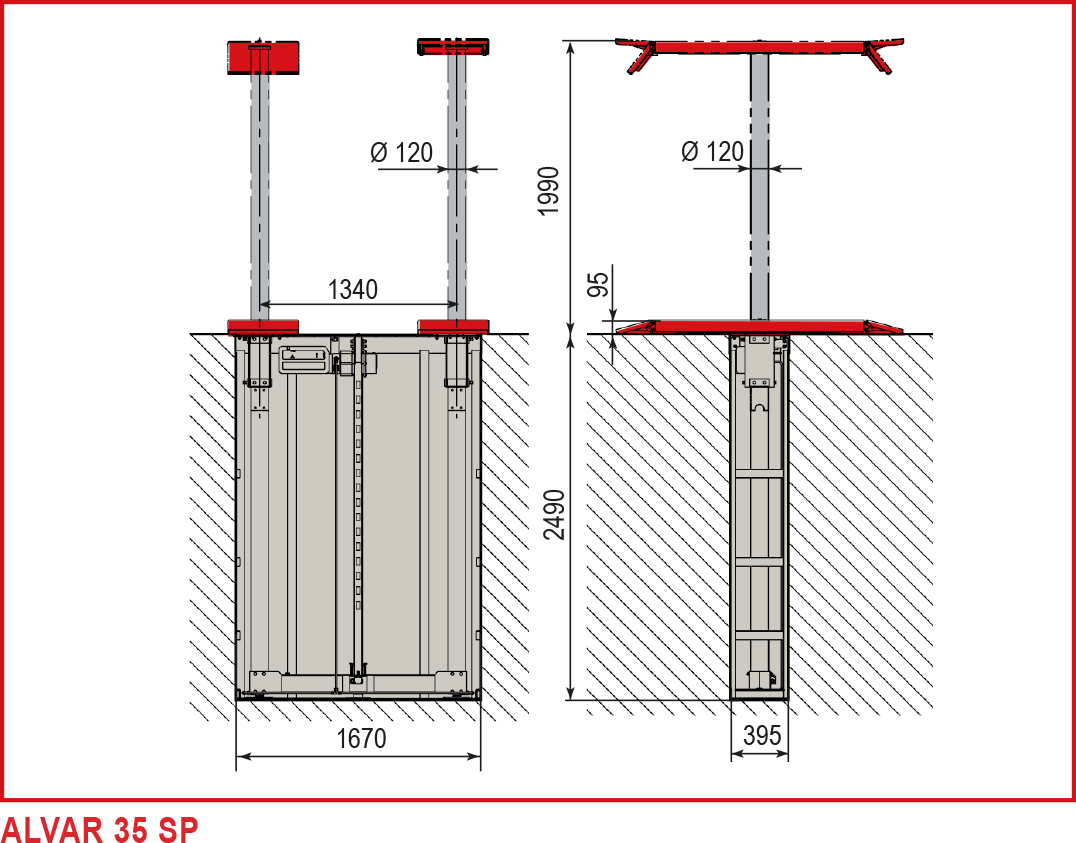

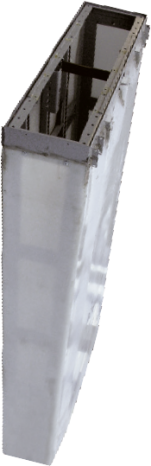

Waterproof inground frame

S1110A5 (→ ALVAR 35NA, SPL, SPLM)
S1150A5 (→ ALVAR 35LP, 55K)

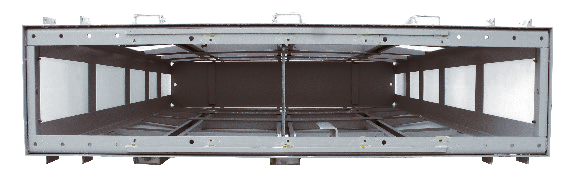

Waterproof inground frame: steel frame and plastic cover.

BT_ALVAR35_cassetta01

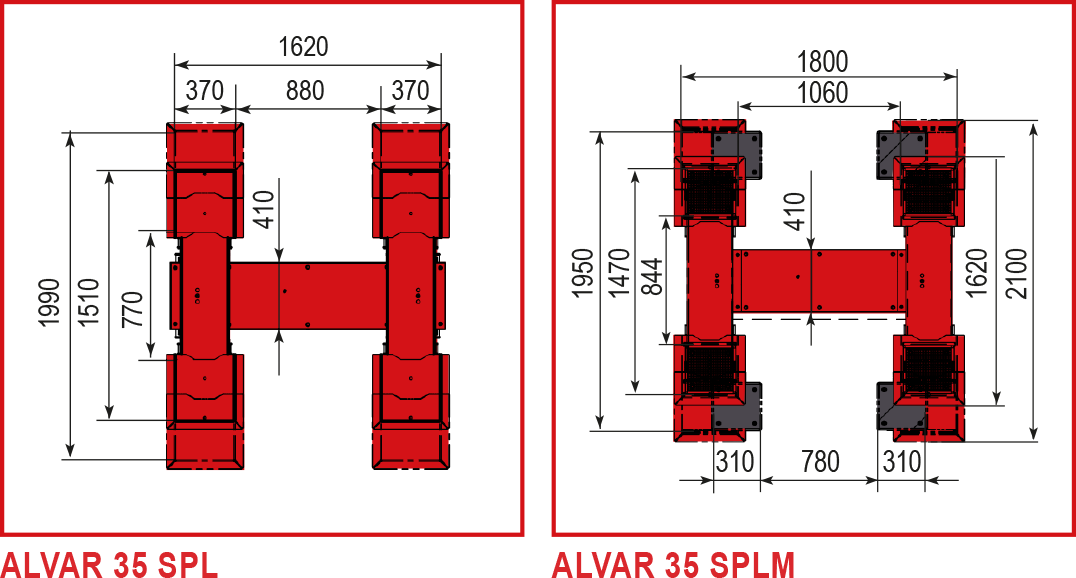

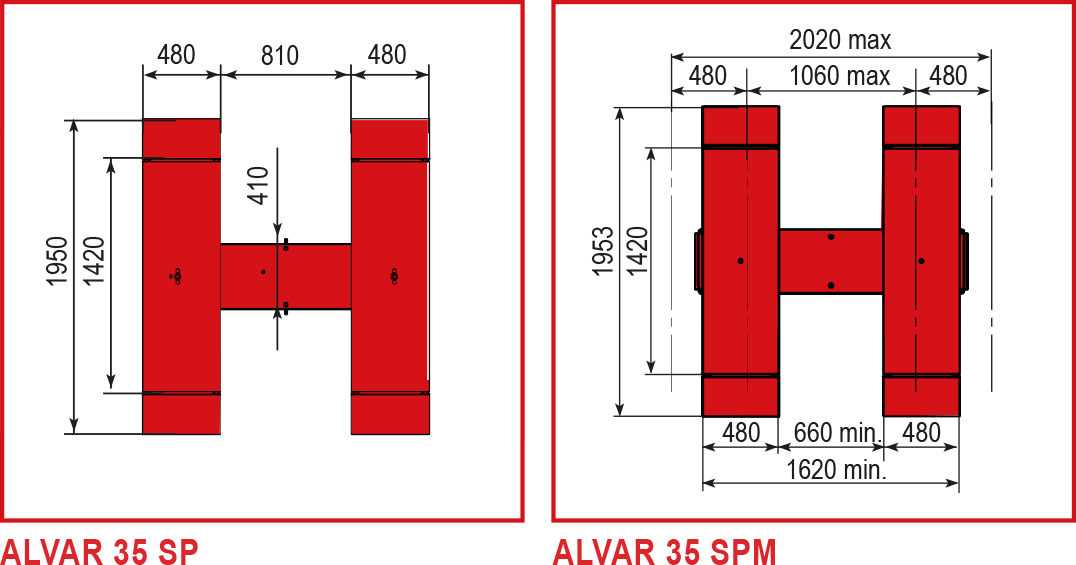

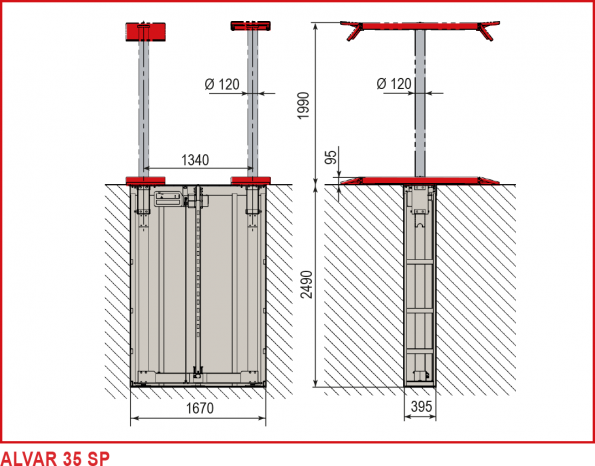

ALVAR 35 SPL / 3500 kg

Lift with extra-low platforms: only 60mm.
Platforms can be adjusted in length.


ALVAR 35 SPLM / 3500 kg

Lift with adjustable platforms both in length and in width.
Min. height: 95mm.

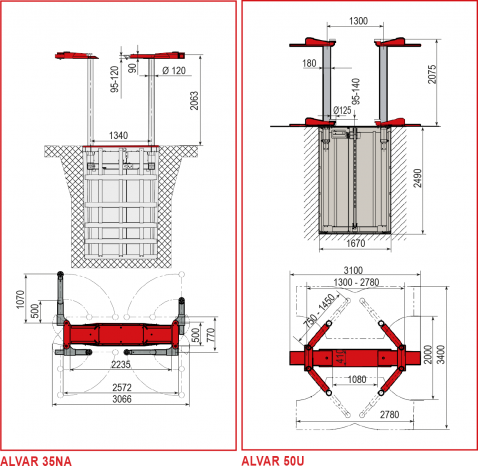

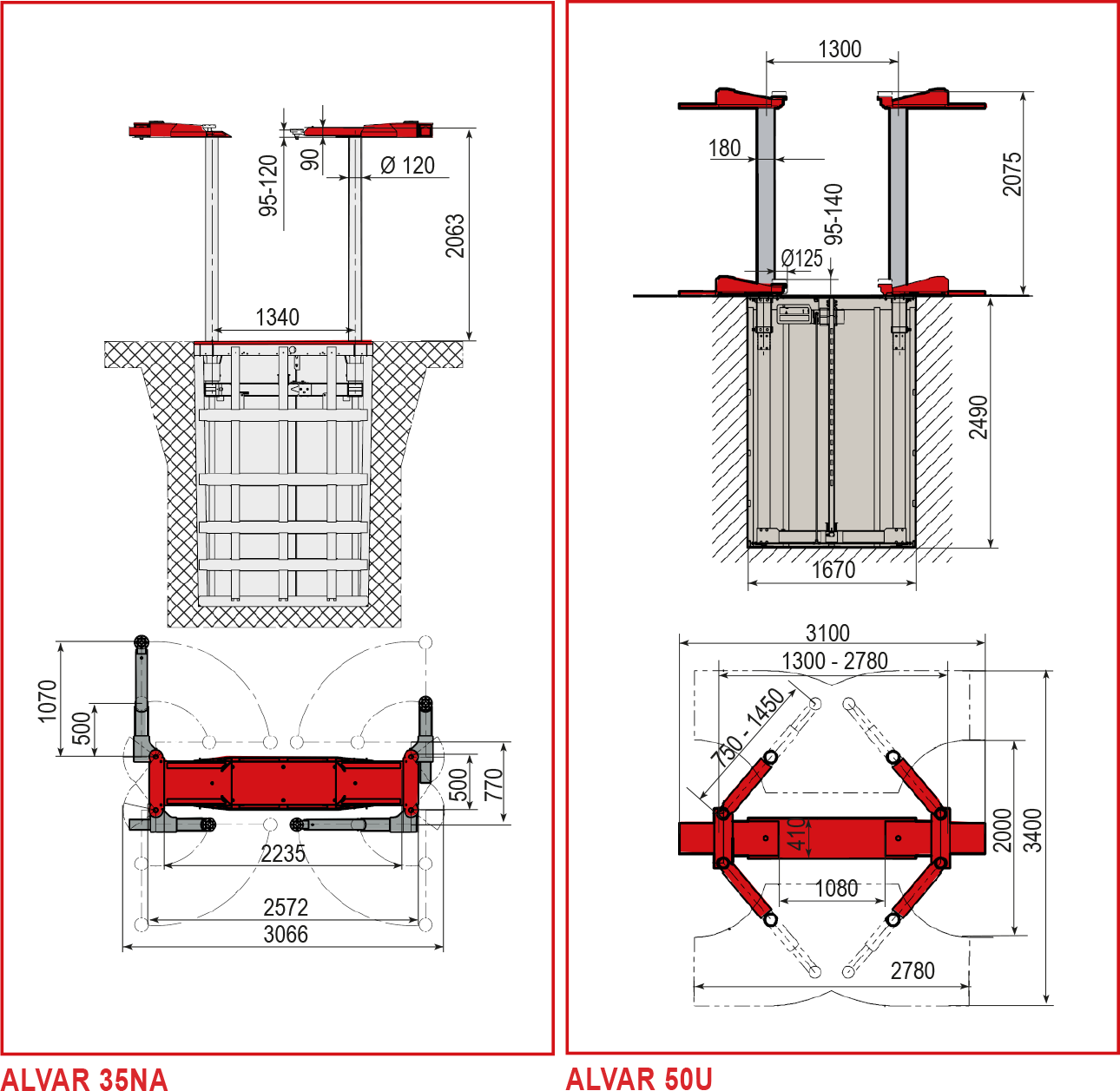

ALVAR 35 NA / 3500 kg

Pads can be adjusted in height and are suitable for quick housing of extensions.



BT_ALVAR35_accesso BT_ALVAR35_bracci

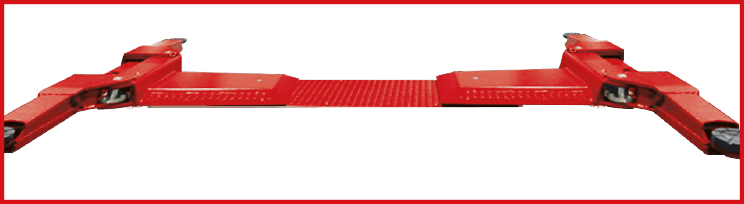

Vehicle access completely free.

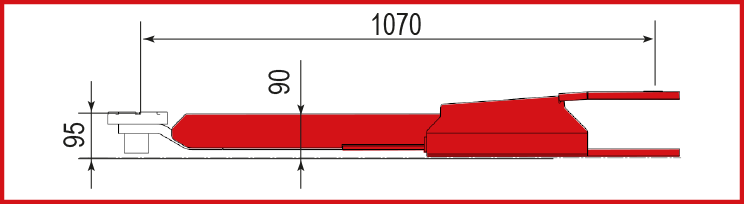

Extra low profile arms, parallel to the floor.


ALVAR 55K / 5500 kg
ALVAR 55LIKTA / 5500 kg

Lift for cars and vans, also with long wheel-base.
The carriages supporting the arms can be adjusted in width, in order to make the lift suitable for any application.

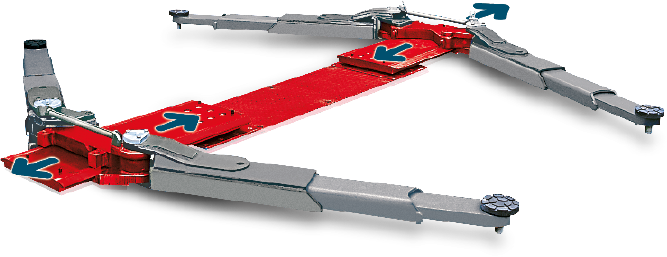

BT_ALVAR35_supporto

UNIVERSAL MOBILE SUPPORTS

The carriages supporting the arms can be adjusted in width, in order to make the lift suitable for any application.

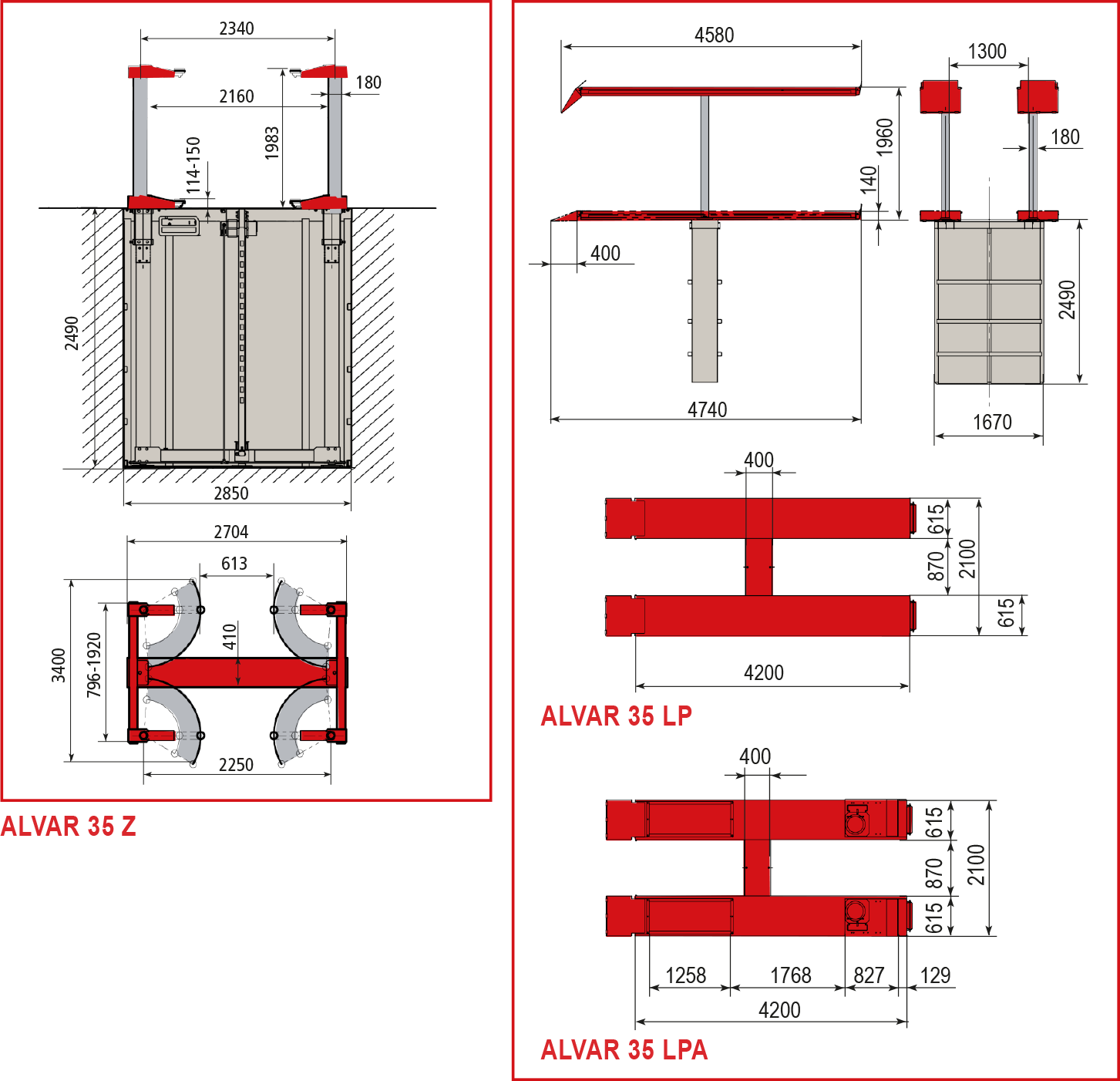

ALVAR 35 Z Body Shop / 3500 kg

Arms can be shifted along two lateral supports to position the vehicle on the body shop bench. Waterproof inground metal frame S1140A4.


ALVAR 35 LP
Service + Inspection / 3500 kg

Minimal platforms height 140 mm: easy access also for cars with low spoilers.
