Speedliner Truck

Speedliner Truck 8080TWSR - 8080TWS - 8060TWSR - 8060TWS - 6040TWS

Features

COMMERCIAL VEHICLE ALIGNER

SPEEDLINER 8080TWSR (8 CCD – 22” MONITOR – PREMIUM CABINET)
SPEEDLINER 8060TWSR (6 CCD – 19” MONITOR – STANDARD CABINET)

– bluetooth transmission between front heads and cabinet
– infrared transmission between sensor heads
– drop-down sensor frame
– double inclinometer to allow caster ADJUSTMENT without steering

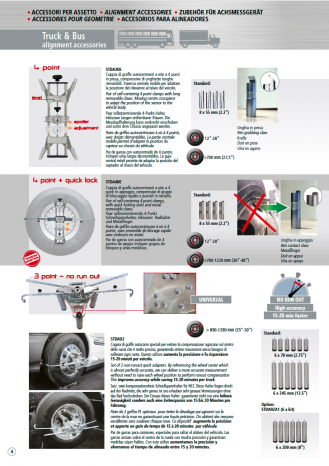

– we recommend the new no run out clamps STDA92 enabling to skip run-out compensation procedure
– not suitable for car wheels (minimum wheel diameter 760mm)

SPEEDLINER 8080TWS (8 CCD – 22” MONITOR – PREMIUM CABINET)
SPEEDLINER 8060TWS (6 CCD – 19” MONITOR – STANDARD CABINET)

– bluetooth transmission between front heads and cabinet
– infrared transmission between sensor heads

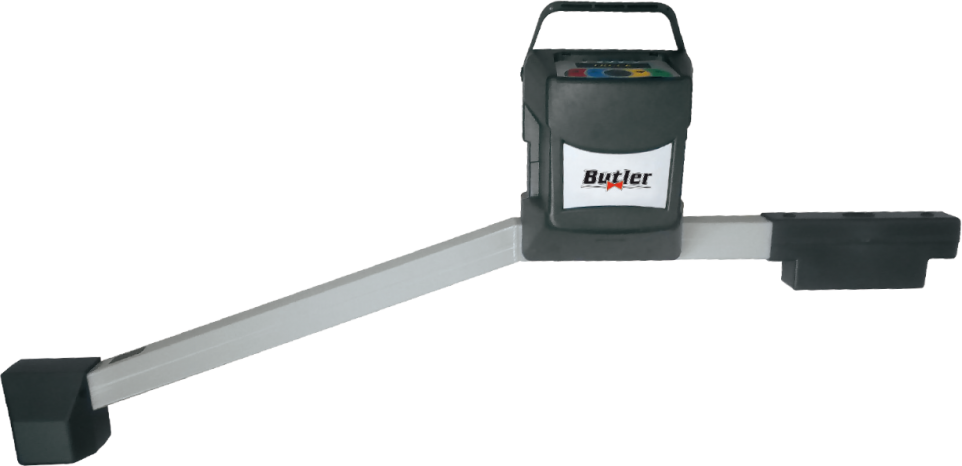

– extended straight sensor frame
– double inclinometer to allow caster ADJUSTMENT without steering
– works on car and van with optional accessories

BLUETOOTH

Faster and more reliable data transmission through Bluetooth (radio can be a problem on large vehicles).



4 REMOTE CONTROLS
Ability to operate the system from any head. Often you are a distance from the console and this slows down the operating speed.

MODERN TECHNOLOGY
Simpler and more modern technology (most recent design compaared to major competition) grants better reliability and  less down-time for the end user.

LEDS
LEDS on the head lets the operator know when adjustment angle is within specification range.

SPEEDLINER 6040TWS (4 CCD – 19” MONITOR – STANDARD CABINET)

With two front measuring heads equipped with 4 CCD sensors and two rear infra red transmitters,this aligner allows to carry out a quick and precise measurement of all steering angles on the front axle, or with two operations on front and rear axles to measure all related angles. Thanks to the long reading distance of the heads, by repeating this operation it is also possible to measure the angles on vehicles with three or more axles or steering axles.
