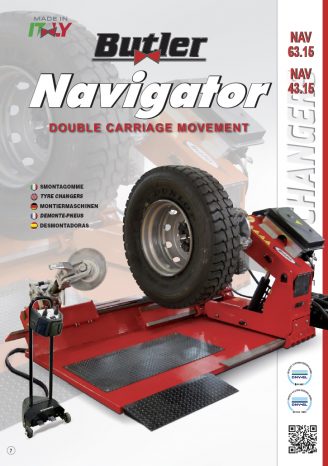

Electrohydraulic tyre changer for trucks, agricultural and earthmoving vehicles.
The dimensions and work strokes are such as to ensure maximum efficiency for the entire range of tyres.
STANDARD NAV63.15 – NAV43.15
The electro-brake allows immediate stopping of the rotation to avoid any damage to the tyre.
NAV 63.15 – NAV 43.15 –
DOUBLE ROTATION SPEED
Double speed for chucking table rotation
NAV 63D.15 – NAV 43D.15
1-6-12 RPM ROTATION SPEED WITH INVERTER
Rotation speed adjustable with inverter at 12/6/1 rpm, also suitable for tyre treading.
Thanks to its considerable bead breaking force mounting and demounting are effortless, even when working with tyres which have been left on the rim for a long period of time in construction sites or mines.
MINIMUM HEIGHT 330 mm (13”)
MINIMUM CLAMPING Ø 90 mm (3,5”)
|Chucking unit rotation motor||1,5 – 2,2 kW||1,3 – 1,85 kW|
|Hydraulic drive unit motor||1,8-2,5 kW|
|Rim Ø||11” – 42”|
|Rim Ø with G108A12||11” – 60”||11” – 56”|
|Max. wheel Ø||2700 mm (106”)||2450 mm (96”)|
|Max. allowed wheel width||1500 mm (59”)|
|Weight||1400 kg||1150 kg|
|Bead breaker power||37000N||32000N|
|Peso max ruota||2600 kg / 5732 lbs||2300 kg / 5070 lbs|
|Chuck rotation speed (rev/min)||4-8|
|Max. torque to chuck||5800 Nm (4275 FtLbs)||5300 Nm (3906 FtLbs)|
