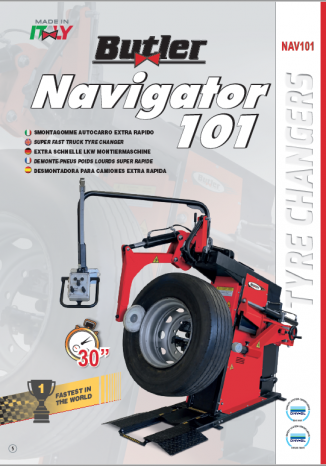

SUPER FAST TRUCK TYRE CHANGER
The Navigator 01N is a one-of-a-kind. Its uniqueness is in the operative system patented by Butler. It is equipped with four rollers with a unique form, positioned on the two sides of the wheel in diametrically opposite positions.
With ths system, the dismounting of the tyre with bead breakers is very simole ad natural: while the anterior bead breakers keep the bead in the drop centre, the posterior ones continue their course until the dismounting is complete.

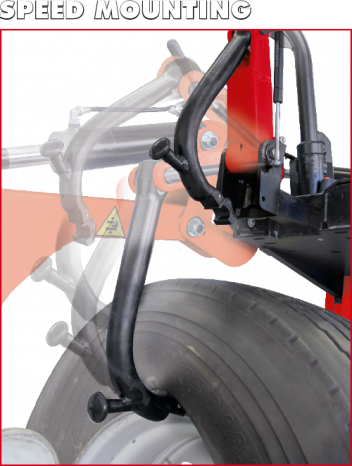

The bead breakers are supported by two arms separately commanded. Each arm has two rollers, one conical which pushes on the bead and one cylindrical which pusches the side of the tyre.

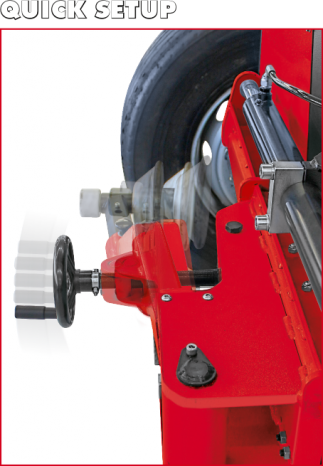

The chucking unit is able to move not only clockwise and counter-clockwise, but also up and down.
Hydraulic chucking table.
30 seconds: the time you need to dismount and mount a truck tyre.
The bead breakers are made in plastic material to prevent damage to the rim.
Chucking unit rotation motor
Hydraulic drive unit motor
Max. wheel Ø
1320 mm (52″)
Max. allowed wheel width
540 mm (21.2″)
Bead breaker power
Max wheel weight
1200 kg (2645 lbs)
Chuck rotation speed (rev/min)
Max. torque to chuck
