Features

Electromechanical two posts lifts with base.


TOREK 27PC2 / 2700 kg
TOREK 32PC2 / 3200 kg

Lift with base for easier installation on low quality floors. Width between posts 2500 mm.  Min. pad height of 95 mm only. Two stage short arms. Transmission by pre-tensioned high resistance chain with safety device.


TOREK 27PC3 / 2700 kg
TOREK 32PC3 / 3200 kg
TOREK 32PC3K / 3200 kg

Three stage short arms, being shorter when in closed position to provide asymmetric loading of large vehicles, and longer when fully extended: recommended for off-road vehicles.

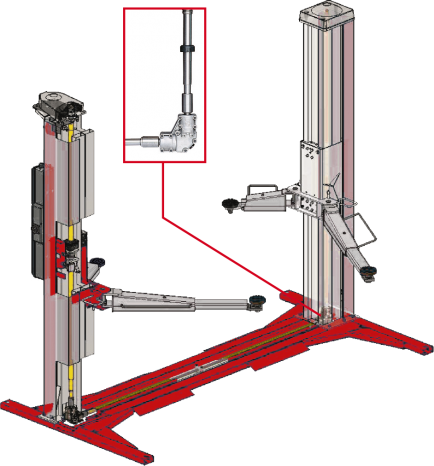

PH VERSIONS

Exclusive lift with self supporting base: installation is possible on floor with poor surface anchorage.

Shaft transmission between posts through oil filled conic gear boxes requiring no maintenance.

 BT_Torek27PC_PHversions

TOREK 27PHE / 2700 kg
TOREK 32PHE / 3200 kg
TOREK 27PHEK / 2700 kg
TOREK 32PHEK / 3200 kg
TOREK 32PHR / 3200 kg

Three stage short arms  provide asymmetric lifting of off-road and large vehicles.


TOREK 40PH / 4000 kg – 2 Motors
TOREK 40PHK / 4000 kg – 2 Motors

Three-stage short arms and two-stage long arms provide asymmetric lifting of vans and off-road vehicles. Width between posts 2650 mm.


TOREK 40PHLIK / 4000 kg – 2 Motors

Model equipped with four long three-stage arms: ideal to lift long wheel base vans and easy lifting of cars.
