LOGIC

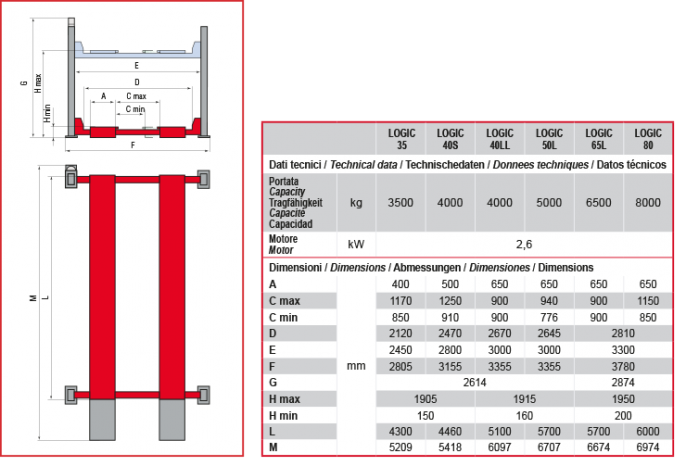

LOGIC 35 - 40 - 50 - 65 - 80

Features

Electro-hydraulic 4-post lifts.


VERSIONS WITH FLAT PLATFORMS

Main technical features

  • The hydraulic cylinder is located inside the fixed platform and is thus perfectly protected.



  • High-resistant, galvanised and pre-stretched metal cables.



  • Large-diameter pulleys with self-lubricating and maintenance-free bushes.



  • Adjustable platform to accomodate different vehicle tracks and optimised access to vehicle underside.



  • Automatic mechanical back-up safety devices (every 100 mm) with pneumatic release allowing stationary operation with unladen cables.




WHEEL ALIGNMENT VERSIONS

LOGIC 40 MA / 4000 kg
LOGIC 40 LLA / 4000 kg
LOGIC 50 LA / 5000 kg

Platforms for total wheel alignment, with front turning plates locations and rear slip plates.

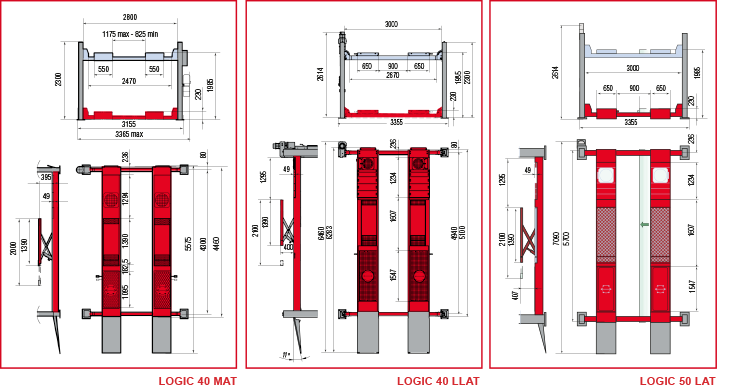

VERSIONS WITH WHEEL FREE LIFT FOR WHEEL ALIGNMENT

LOGIC 40 MAT / 4000 kg
LOGIC 40 LLAT / 4000 kg
LOGIC 50 LAT / 5000 kg




VERSIONS WITH WHEEL FREE LIFT

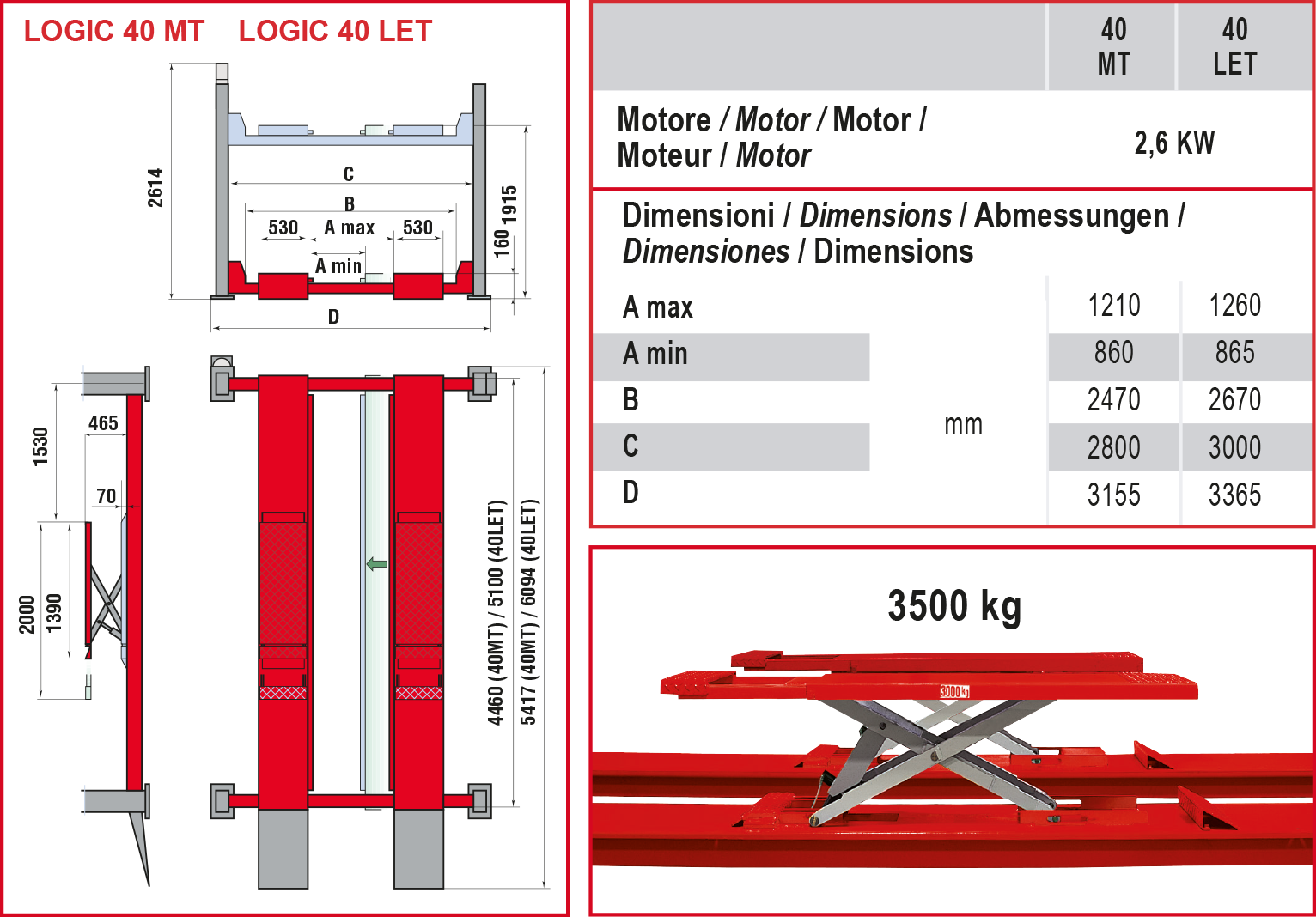

LOGIC 40 MT / 4000 kg

Optimum size for cars and light-duty commercial vehicles.


LOGIC 40 LET / 4000 kg

The long platforms (5100 mm) and the large inner distance between posts allow lifting of  light commercial vehicles and long-wheelbase vans.





BT_LOGIC_TAB-5
