ERGAX LP LOW PROFILE

ERGAX LP LOW PROFILE 30LP - 30LPT - 35LP - 40LP

Features

Low profile scissors lifts.

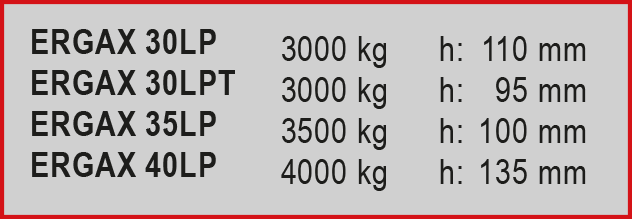

BT_ERGAX-LP_tab


ERGAX 30LP / 3000 kg

The minimum height from the floor guarantees easy and rapid positioning of the vehicle on the lift.


ERGAX 30LPT / 3000 kg
ERGAX 35LP / 3500 kg

Extra low version.
The lift is an ideal choice for low ground clearance vehicles of all types and in particular for extra low spoilers.


ERGAX 40LP / 4000 kg

High capacity model with longer lifting plates.


BT_ERGAX-LP_valvola BT_ERGAX-LP_dispositivo

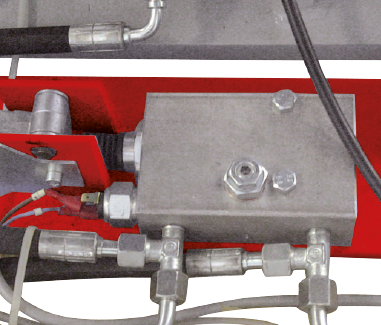

Every time the platforms reach the floor, the lift is perfectly levelled thanks to a patented valve.

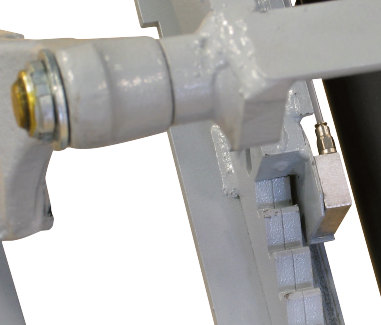

Mechanical locking device with automatic engagement and pneumatic release, ensures maximum safety when lift is in standing position.


ERGAX 30ILP – ERGAX 30ILPT – ERGAX 35ILP – ERGAX 40ILP

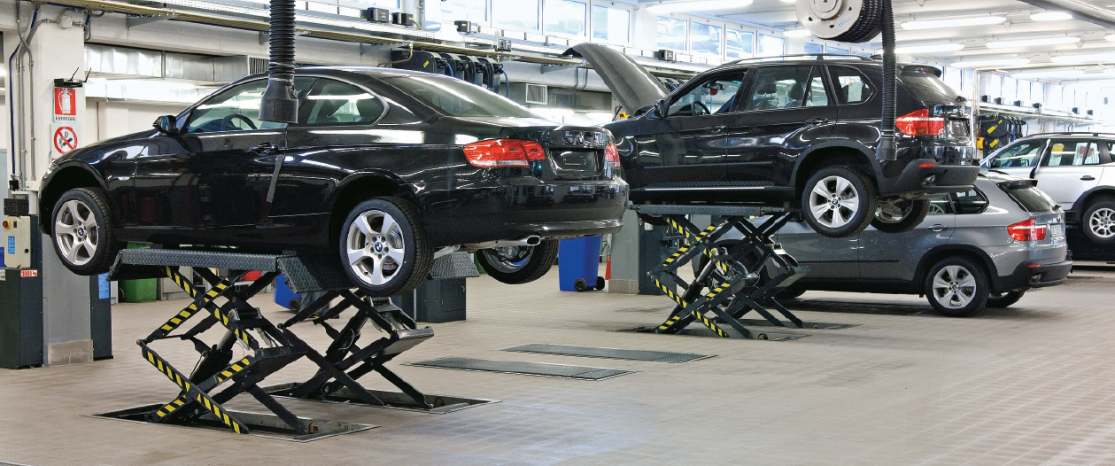

BT_ERGAX-LP_incassate

Recessed versions.
