Automatic tyre changers
Speed set by the operator, exactly as required. Inverter with governor to protect the tyre.

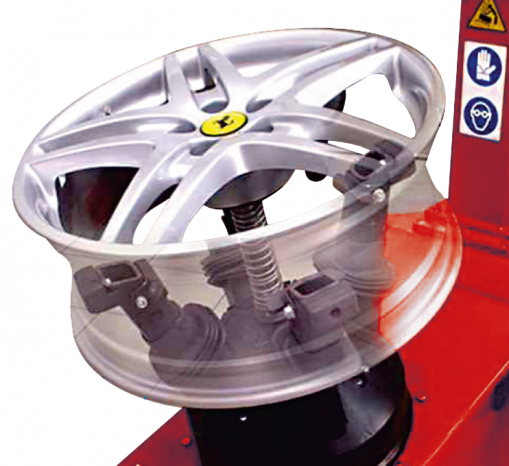

Exclusive Hydraulic Roller System Aids
Safely and easily handles ultra low profiles tyres and runflat.
Easily rolls the tyre off / on the rim, preventing damage.

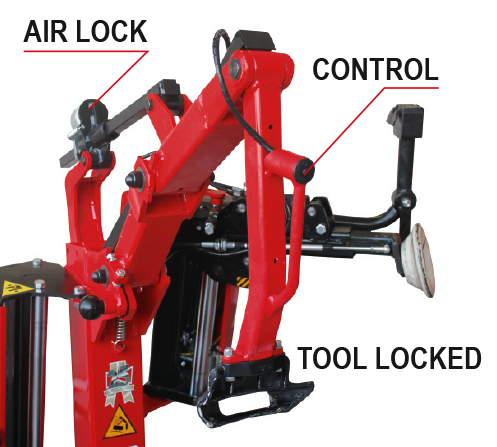

The new Tool Locking system (TL) allows to set quickly the distance between tool and rim.

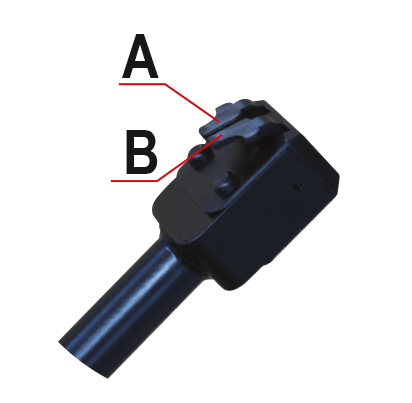

New commands: permitting a precise and adjustable approach (button A), separate from the hydraulic bead breaker power command (button B).

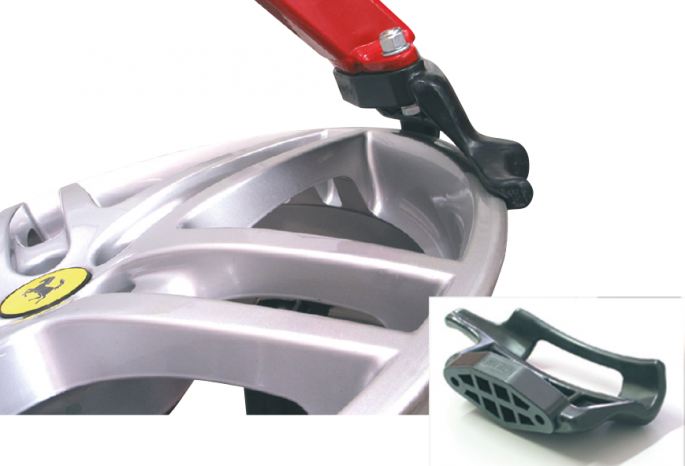

Special Plastic Tool
|Chuck rotation speed (rpm)||13 rpm|
|Rotation motor||1,5Kw inverter + 0,75 Kw motor|
|Max wheel diameter||45″ 47″(CL)|
|Vertical bead loosener opening||490 mm (19”)|
|Side bead loosener opening||400 mm (17”)|
|Inner clamping||12”- 24”|
|Outer clamping||12”- 24”|
|Bead loosener power (each roller)||2.000 kg (4400 lbs)|
|Side bead loosener power||3.000 kg (6600 lbs)|
|Max torque||1200 Nm|
|Recommended air supply||8 / 10 bar|
|Power supply||1 ph, 200/265v, 50/60Hz|
