KENDO.30S

Features

Automatic tyre changers without mounting lever

Rapid bead breaker roller and tool adjustment

The bead breakerrollers and tool are simultaneously positioned in one simple movement.

Automatic arm locking

To ensure greater precision, the arms automatically lock in place during mounting and demounting.


BT_KENDO30LIGHT_PIATTO-EXTRA-GRIP



BT_Jecko28_INVEMOTOR

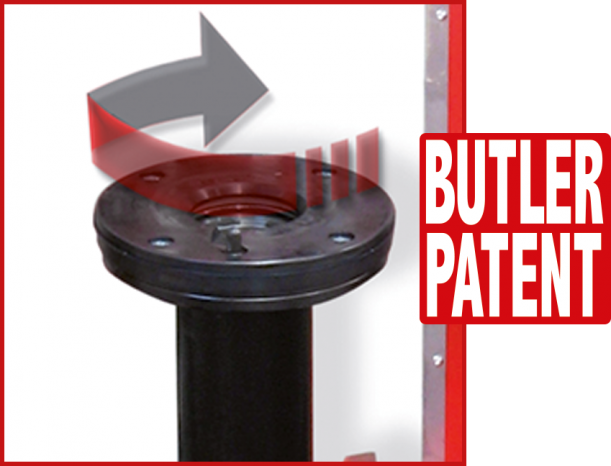

EXTRA-GRIP CLAMPING DEVICE

Gripping pressure is automatically increased during rotation.

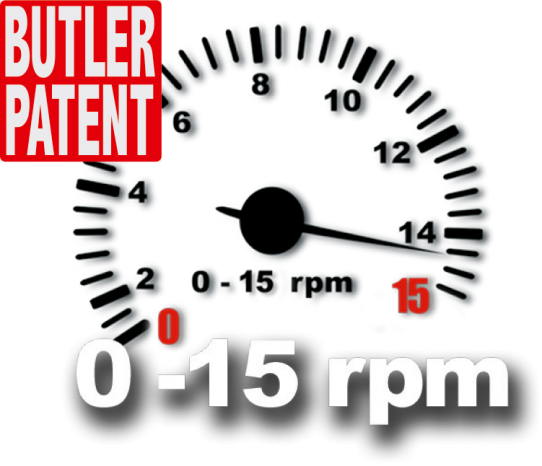

INVEMOTOR

Speed set by the operator, exactly as required. Inverter with governor to protect the tyre.


BT_KENDO30LIGHT_CORPO-ES



BT_KENDO30LIGHT_FIversion

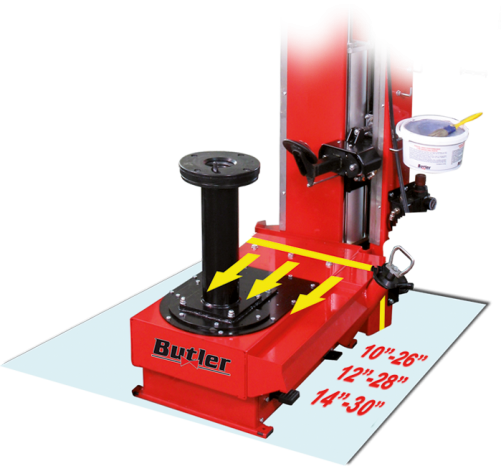

UNIT EXPANDS UP TO 30”

3-position extensible base with standard configuration 10”-26”. The operator can expand the working range up to 30”.

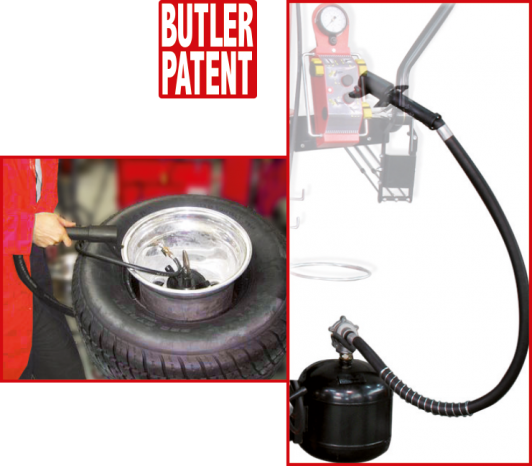

F.I. VERSION

Powerful tubeless tyre inflation system suitable for any rim diameter. Includes a safety device to protect the operator.


TOOL

BT_Jecko28_utensile

Tool in scratch-proof material, it removes the bead without damaging the rim and without using levers.


BUTLER_KENDO.30S_EQUIPPED

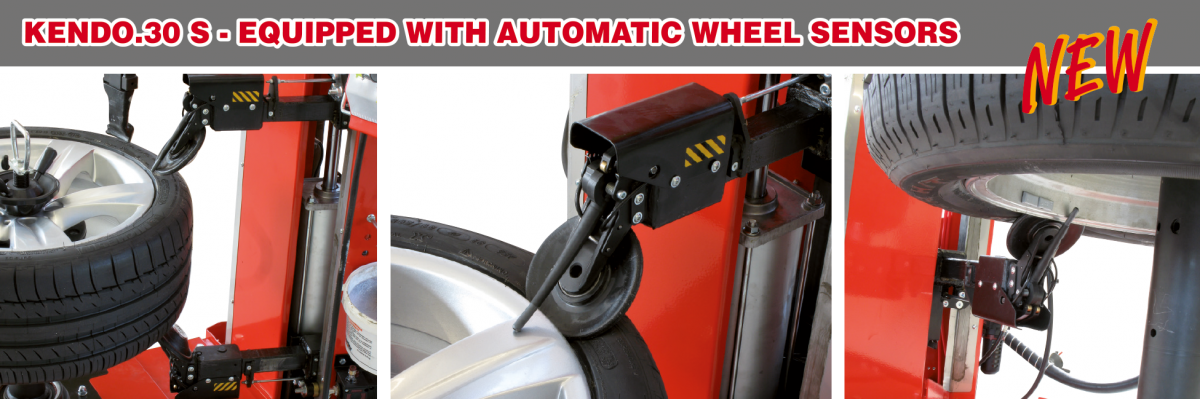

The proximity sensors automatically activate the radial penetration movement, simplifying bead breaking. The gradual, controlled motion of the beadbreaker rollers allows the bead to be broken close to the edge of the rim, protecting the tyre sidewall and any pressure sensors. Made from plastic material, the rollers do not damage the rim even if contact occurs.
