Tread depth is measured as the vehicle passes over the Profiler at a max. speed of 8 km/h (5 mph).

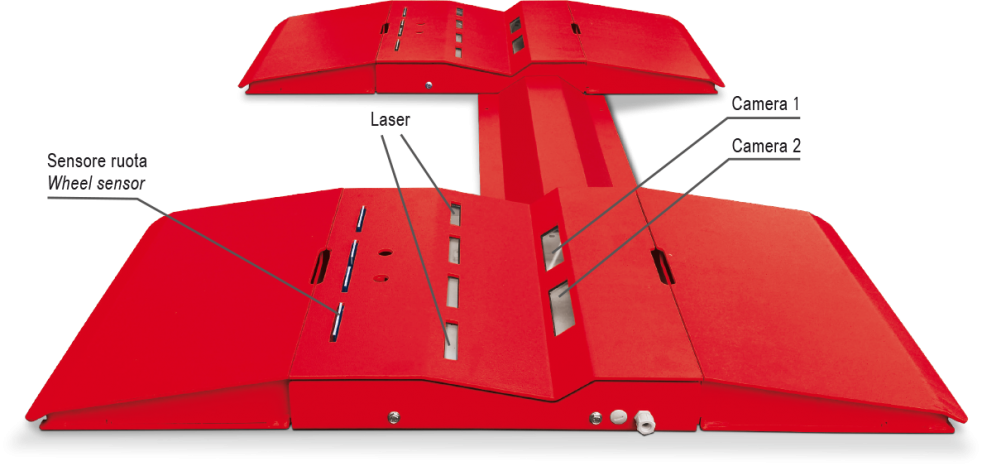

Measuring system: Stereo cameras plus laser blade.
Measurement results are available within seconds.
Designed with no moving parts to withstanding workshop environment.
For axle loads up to 4 tons.
Uneven tyre tread wear indicates the need for wheel alignment adjustment and suspension analysis.

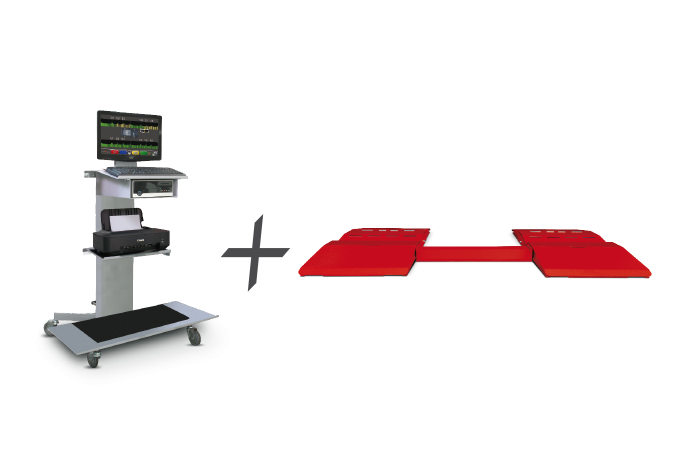

BU WS101 – Stand Alone
Workshop PC on trolley with direct access to customer data and measurement values. The software runs on any Windows based system.
BU WS102 – Stand Alone KIT
SpeedTread kit to be connected to the workshop’s system. Includes one electrical box complete with PC to be connected to the existing workshop PC.

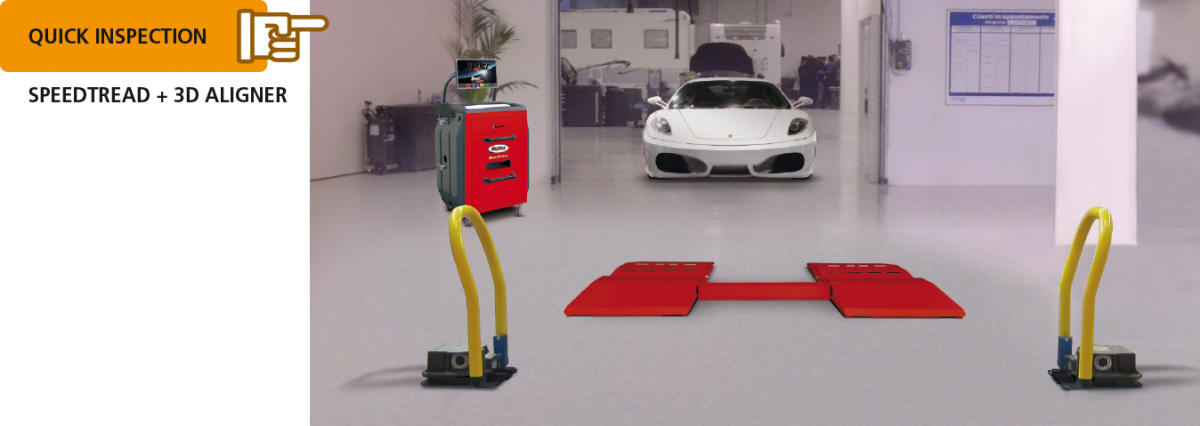

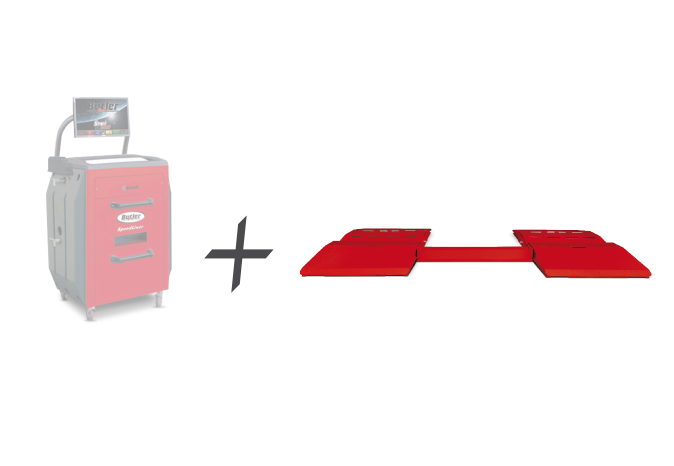

Upgrade kit for wheel alignment or test lane.

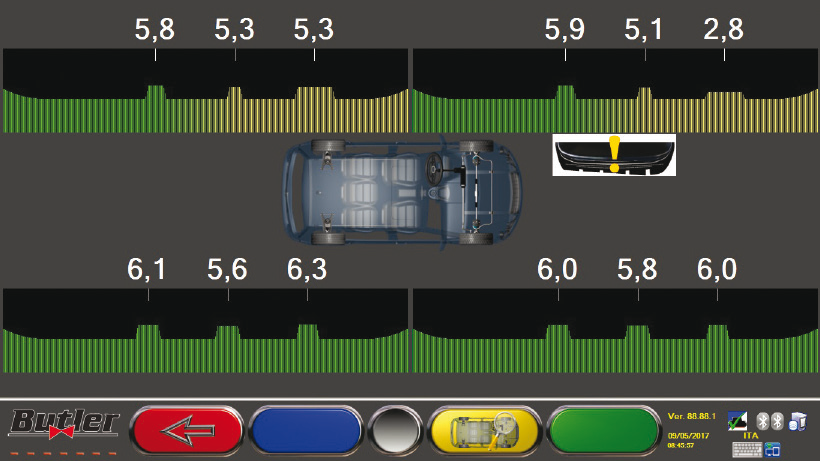

Test result. Graphic representation of tyre wear. Indication of maximum and minimum tread depth.

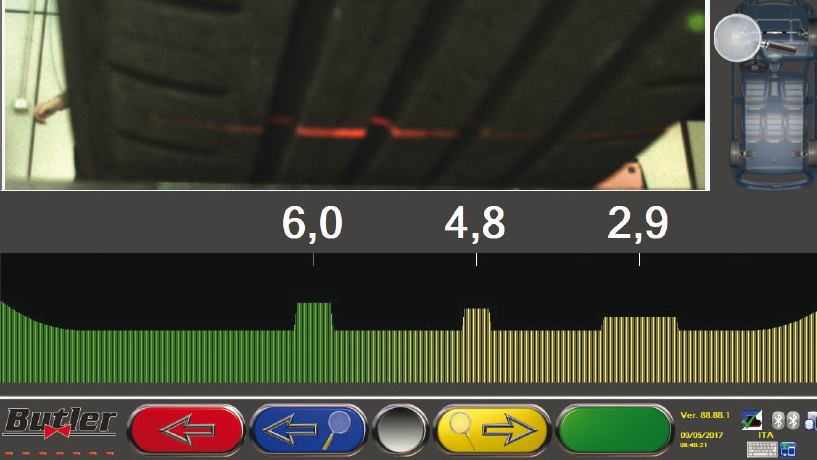

Zoom function. It allows to select one of the 4 tyres for a more detailed analysis.
|DATI TECNICI||TECHNICAL DATA|
|Precisione di misura||Measuring accuracy||0.25 mm|
|Larghezza max pneumatico||Max. tire width||600 mm|
|Velocità massima||Max. speed||8 km/h (5mph)|
|Alimentazione||Power||100 to 230 VAC,|
|50 – 60 Hz, 1-phase|
|Peso massima per asse||Max. axle load||4 t|
|Temperatura di utilizzo||Operating temp./ Operating range||0-40°C|
|Grado di protezione||Protection level of measuring modules||IP65|
