MOVID Wired & Wireless

MOVID Wired & Wireless 85H - 75H - 55H - 385HWS - 375HWS - 355HWS

Features

Electro-hydraulic mobile column lifts.

OPERATING FEATURES

  • Electronic system ensuring synchronization of all columns (PLC programmable controller with self-diagnostic system) should the maximum permitted difference in level be exceeded between the carriages. Safety stop in case of malfunction.

  • Selection of several operating modes possible on the master control box:
    – Simultaneous operation of all columns
    – Simultaneous operation of one or more pairs of columns
    – Single operation of each column.

  • Electronic device selects automatically the correct main supply phase sequence.

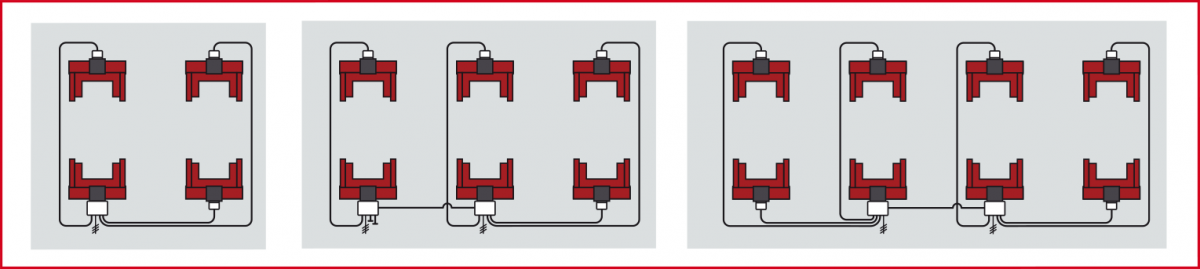

CONFIGURATIONS

BT_MOVID_conf


BT_MOVID_main

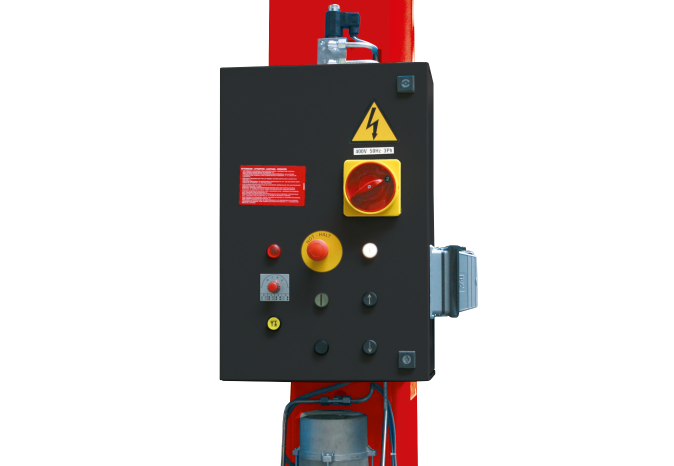

Main control panel of the main column featuring all controls.


BT_MOVID_slave

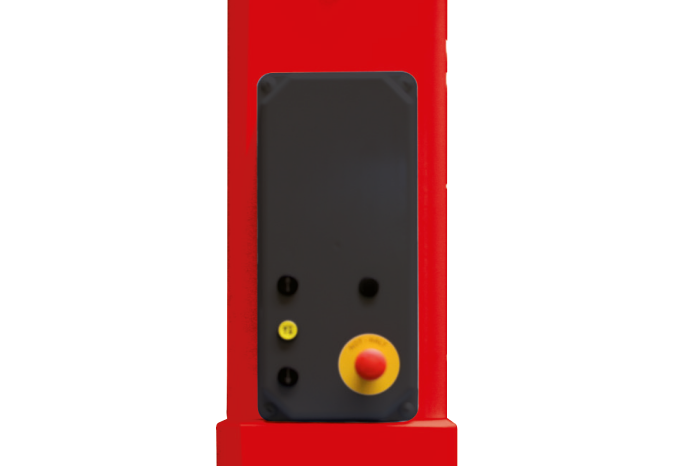

Secondary control panel, featuring lifting and lowering controls and emergency stop button.


BT_MOVID_sfasamenti

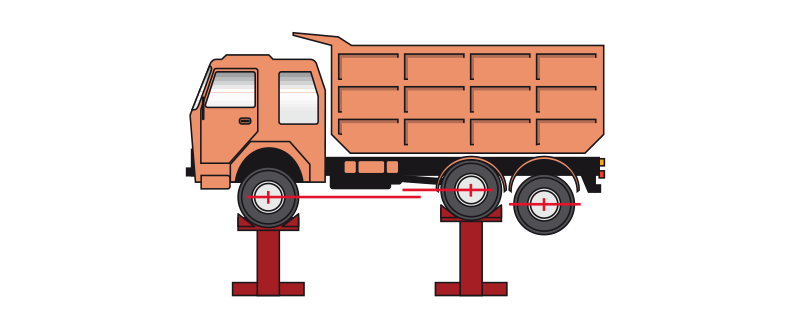

Possibility of setting a different height between pairs of columns while retaining the level synchronization.


  • Electro-hyrdraulic operating lifts

  • Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture

  • Self-controlled lowering speed

  • Mechanical safety latch with automatic engagement and hydraulic release ensuring maximum safety when lift is in parking position

  • Warning light when the lift is in parking position.


BT_MOVID_55H-4N

MOVID 55H.4N

Simultaneous operation of all columns. Electronic system ensuring synchronization of all columns. Safety stop in case of malfunction. Low voltage controls (24 V) on the main column.


BT_MOVID_base

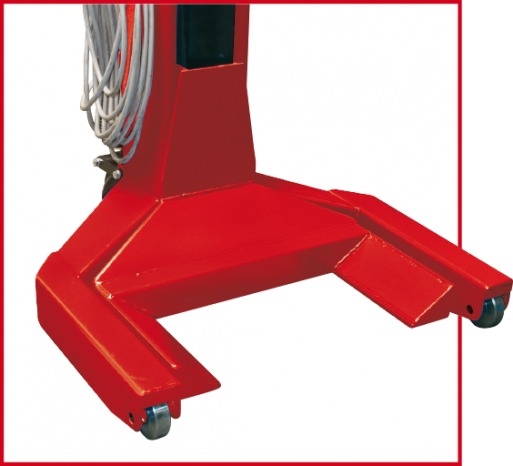

Large and solid base for maximum stability under load with self-supporting transportation steel wheels.


BT_MOVID_martinetto


BT_MOVID_specialVersion

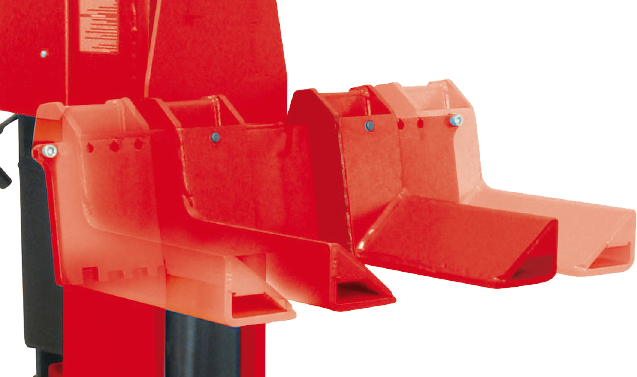

SPECIAL VERSION
(→VAR 300/F →MOVID85-75)
(→VAR 295/F →MOVID55)

Version on demand featuring adjustable forks for wheels from 500 to 1200 mm in diameter.
